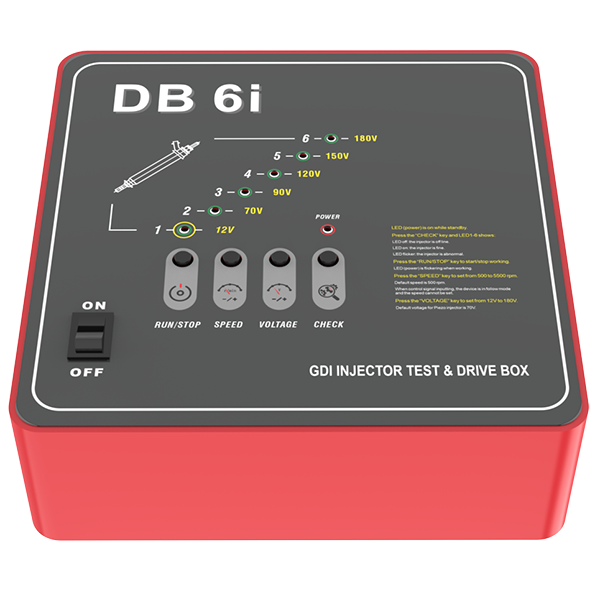

DB-6i Injector Driver & Tester

1、Parameter

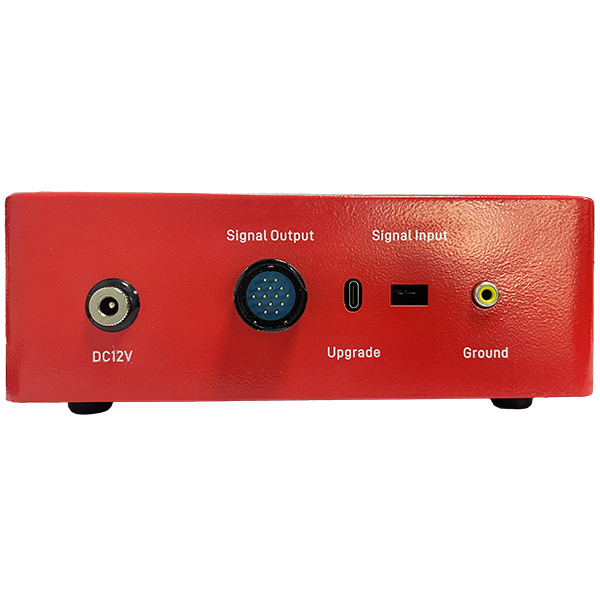

     1）     Input Voltage：DC12V/15A

     2）     Power：150W

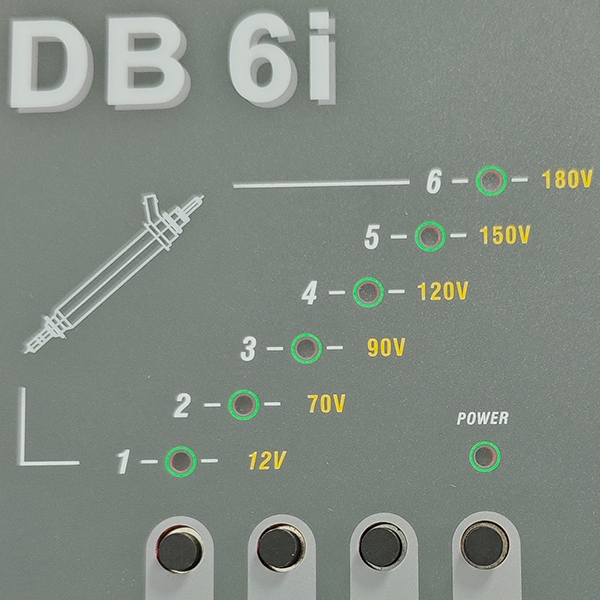

     3）     Output Voltage：DV12/70V/90/120V/150V/180V

     4）     RPM：500-5500rpm

     5）     Step：500rmp

     6）     Resistance Range：1.0-50Ω

     7）     MPW：0.5ms

     8）     Min Period：1ms

2、Characteristics & Functions

     1）     Wide range and adjustable test voltage

     2）     Active/Followed by test mold

     3）     Intelligent check injector & good/bad

     4）     Intelligent select driver mode

     5）     Adapt to various injector Cleaner & Tester

     6）     Actively selected by RPM/voltage

     7）     Followed by input control signal

     8）     PID control technology

     9）     Patented technology, strong and durable

    10）    Easy to operate, learn and understand
