AMC-800/800A-YF A/C System Maintenance Center

Product introduction

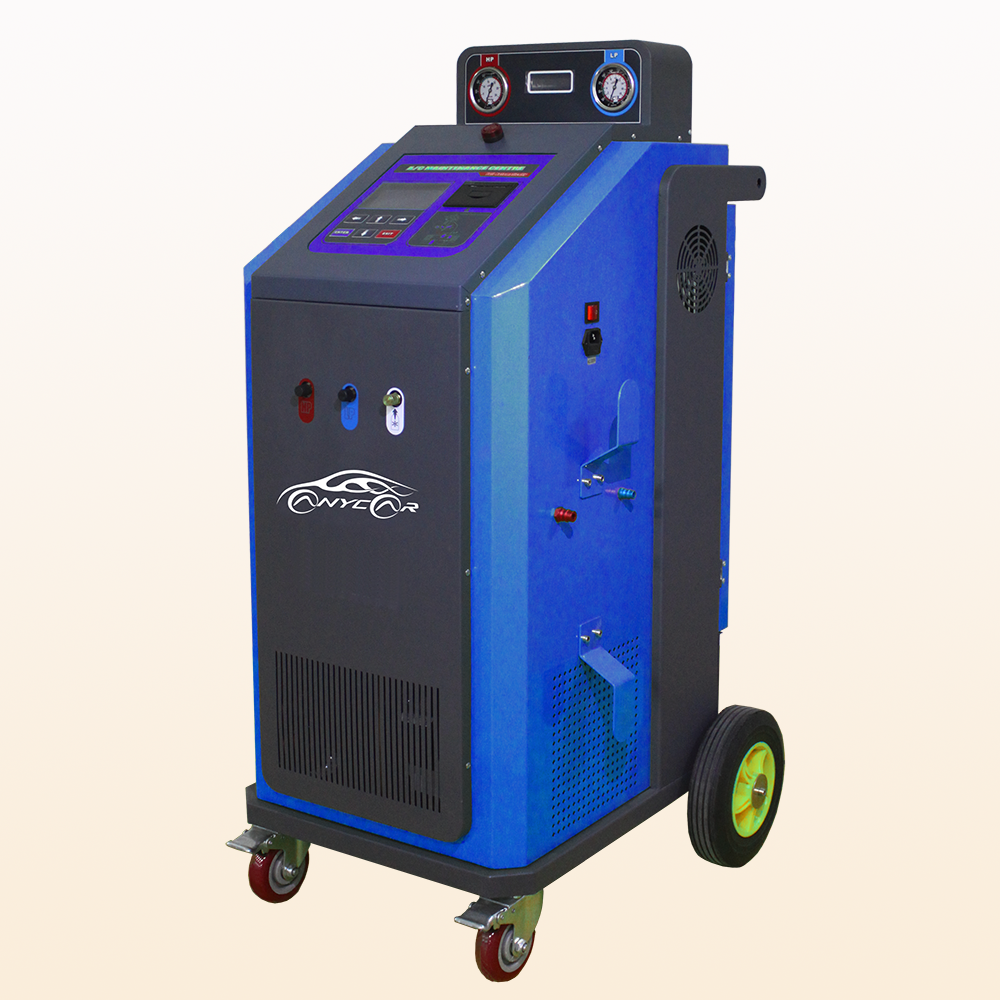

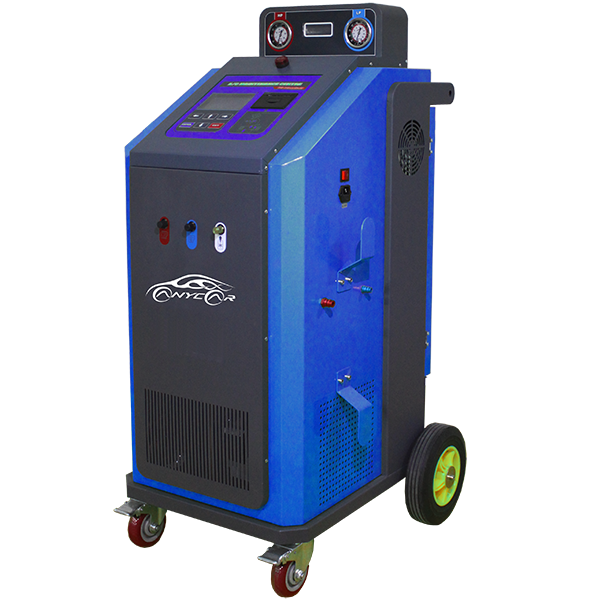

AMC-800/800A-YF A/C System Maintenance Center


1 Features

1)         Fully automatic, easy to operate.

2)         Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance.

3)         With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.

4)         Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

5)         Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car.

6)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

7)         Easy to operate with the concise operating interface.

8)         Designed with large size LCD.

9)         Database.

10)       Program and database can be updated.

11)       With printer.

12)       Designed with auxiliary load cell for recharging by the external refrigerant tank. (external tank, only 800A)


2 Specifications

1)         Working conditions:

Ambient temperature: 0~50°C

Relative humidity: 85%

2)         Voltage input: AC220V±10~50Hz   AC220V±10~60Hz  AC110V±10~60Hz

3)         Compressor12.12cm3

4)         Vacuum pump:7.2m3/h5Pa

5)         Load cell for tank: ±10g

6)         Auxiliary load cell: ±10g(external tank)

7)         Load cell for oil bottle: ±5g

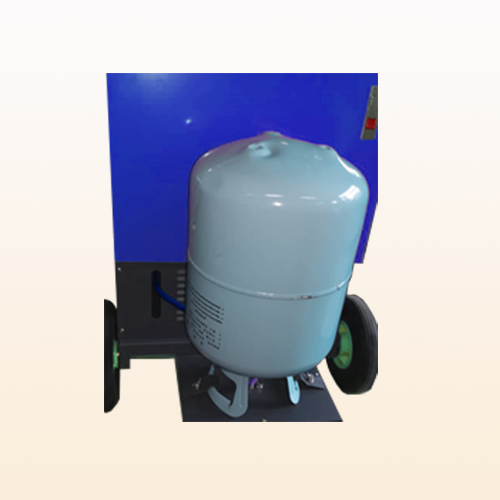

8)         Tank:12L

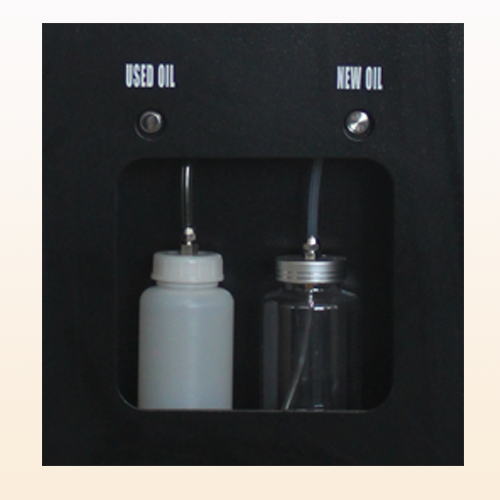

9)          New Oil bottle: 250ml

10)        Used Oil bottle:500ml

11)        LCD display: 240*128

12)        Working pressure: max. 20bar

13)        HP gauge: -1bar~3.5MPa

14)        LP gauge: -1bar~2.0MPa

15)        BacklightingLED


3Functions

1) Primary functions

A、   Automatic flushing

B、   Automatic recovering/recycling

C、   Automatic/manual used oil drain

D、   Automatic vacuum

E、   Automatic/manual new oil injection

F、    Automatic recharging with load cell

G、   Automatic recharging via the secondary recharging tank (800A)

H、   Auto mode

I、     Database


2) Subsidiary functions

A、    Parameter setting

B、   Supply refrigerant

C、   Electric scale calibration

D、   Maintenance procedures (dry-filter exchange, vacuum pump maintenance)

E、   Printer checking

F、    System inquiry

G、   Equipment info

H、   Help
