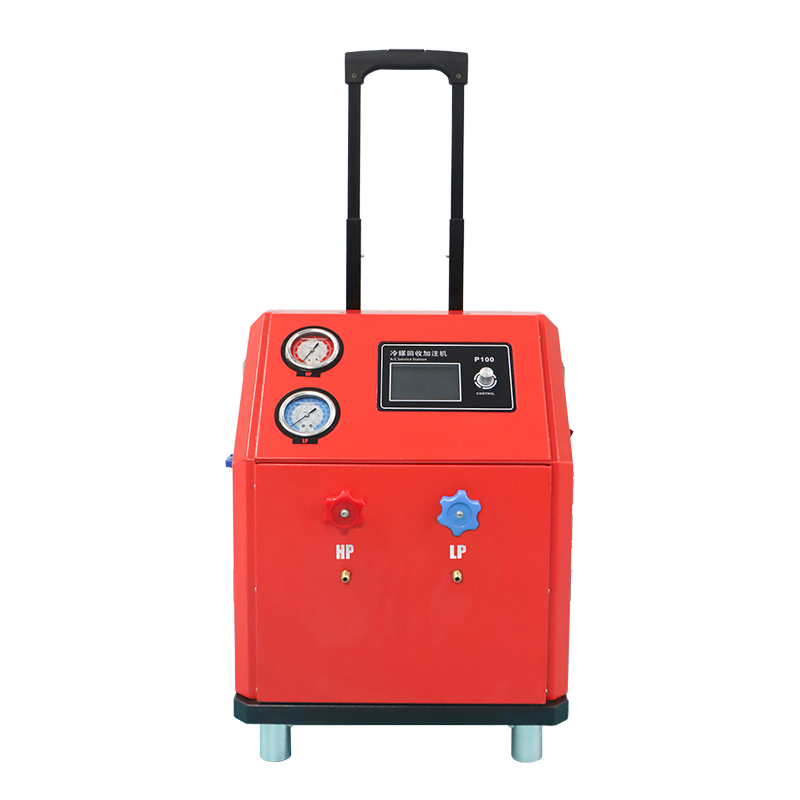

AMC-100P Portable Refrigerant Recovery & Charging Machine

1、PARAMETERS

     1)       Input power: AC220V/5A

     2)       Compressor: 3/4HP, oil-free

     3)       Vacuum pump: Around 20L/Min, 15Pa

     4)       Load Cell: 50kg±10g

     5)       Max. work pressure: 38Bar

     6)       Recovery rete(kg/min): Gas 0.25/Liquid 1.8/Push-pull 6.0

     7)       Old oil bottles capacity: 300ml

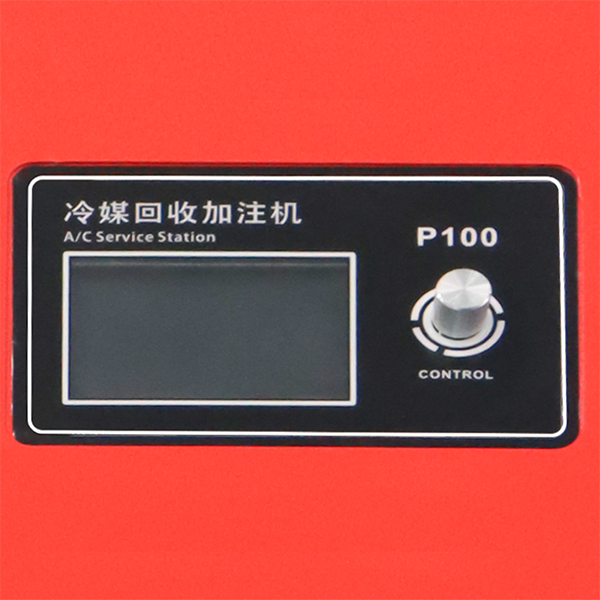

     8)       LCD: 4´ color display

2、CHARACTERISTICS & FUNCTIONS

      1)       Mircocomputer-controlled, fully automated

     2)       Portable design for versatile applications

     3)       User-friendly interactive interface, simple operation

     4)       Gas / Liquid / Push-pull recovery modes

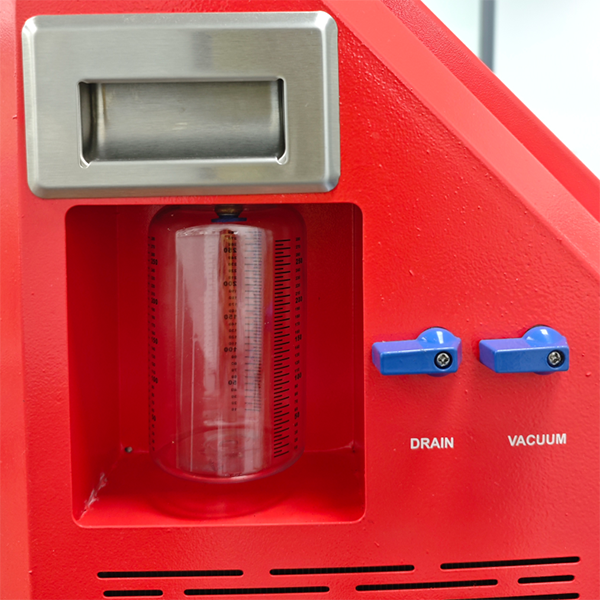

     5)       Oil separation & Manual drainage

     6)       Timed vacuuming for general maintenance

     7)       Quantitative recharging (pressure differential / forced modes)

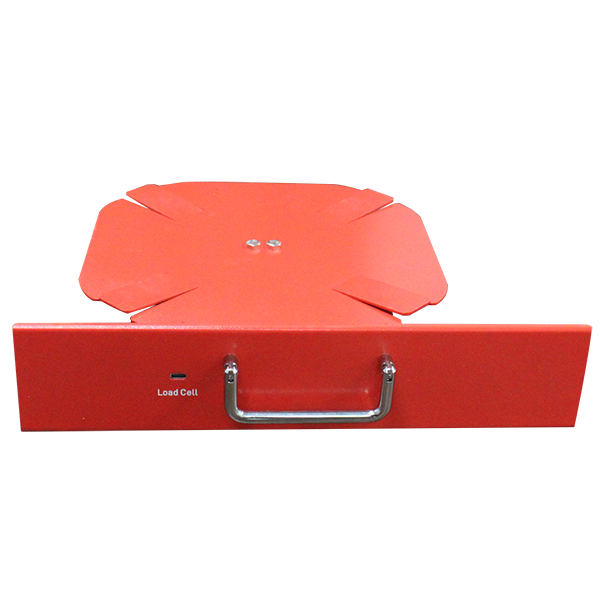

     8)       Hidden load cell, easy to use

     9)       Hidden retractable handle and silent wheels, easy to move.

    10)      High-sensitivity single-knob & one-touch operation
