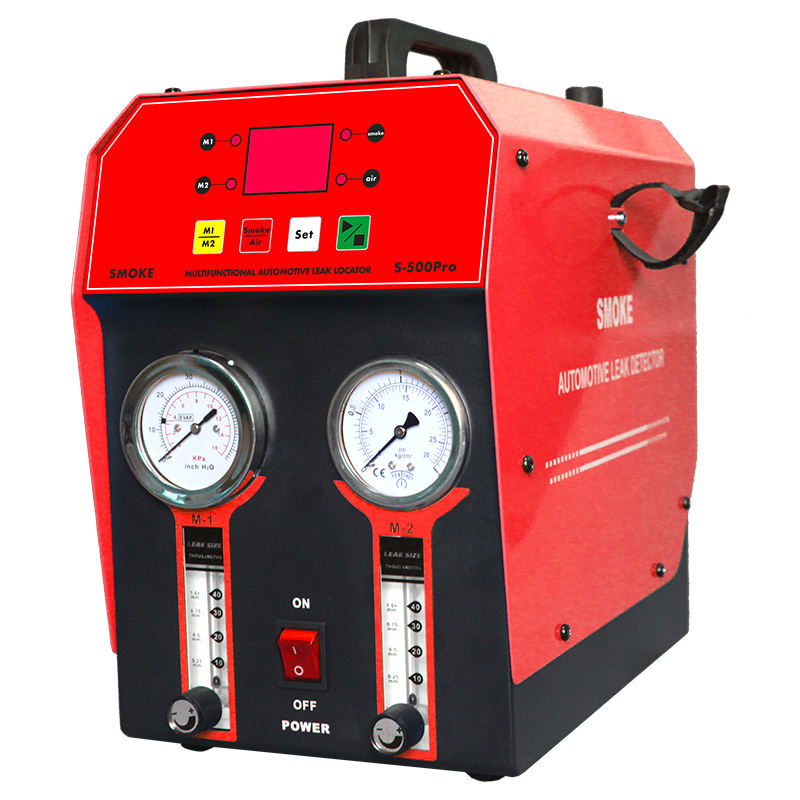

S500Pro Smoke Diagnostic Leak Detector

1、Features

S200Pro Series Smoke Leak Detector is the economic automatic pipeline leakage detection equipment developed by our company, which conforms to SAE test standards. It build smoke fast with large volume, which can effectively help maintenance personnel improve work efficiency. It is a better Smoke Leak Detection products than others.

2、Functions

1)         Air test mode

2)         Pressure-holding test mode

3)         Smoke test mode

4)         Dual system test（TURBO / EVAP model）

5)         Multi system test（TURBO / EVAP / HD model）

3、Specifications

1)         Power：DC12V/6A & DC12V/8A

2)         Flow amount：＜15L/Min & 30L/Min, adjustable

3)         Air： internal compressor pump

4)         Test pressure range：<1.2bar/~3.5KPa(0.5psi) & 10Bar/<1.2bar/~3.5KPa(0.5psi)

5)         Pressure Gauge: 2Bar/16KPa & 10Bar/16KPa

6)         Oil Filling: 15-35ml
