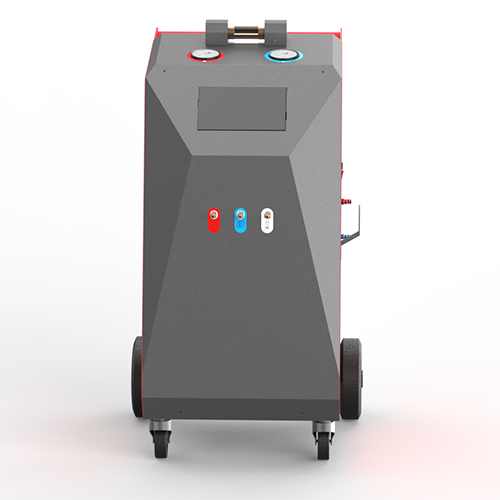

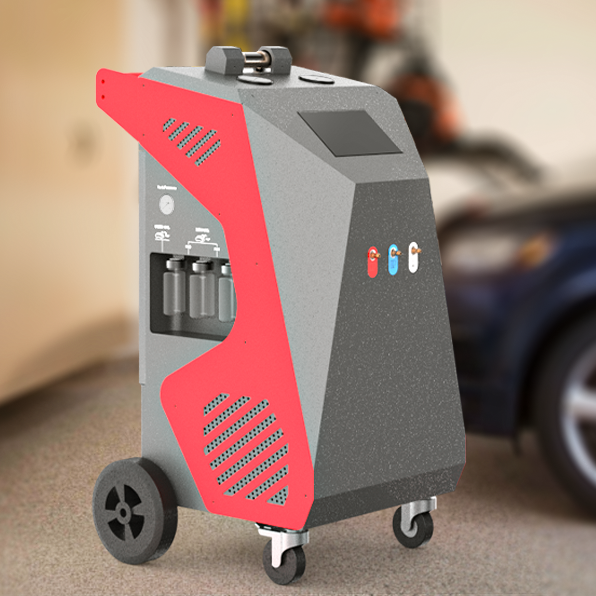

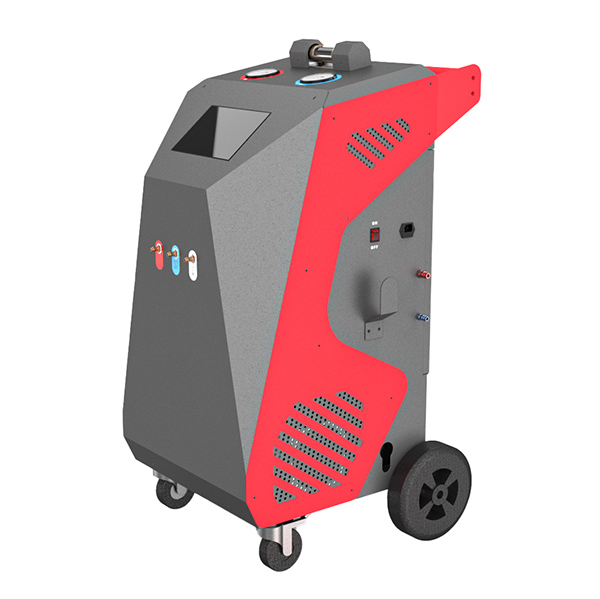

ADS-8100 A/C System Flushing & Recovery Machine

1、 Features

         1)         Fully automatic, easy to operate.

         2)         Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance.

         3)         With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.

         4)         Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

         5)         Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car.

         6)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

         7)         Easy to operate with the concise operating interface.

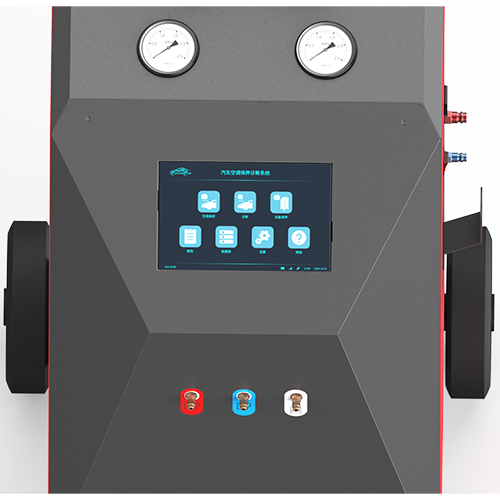

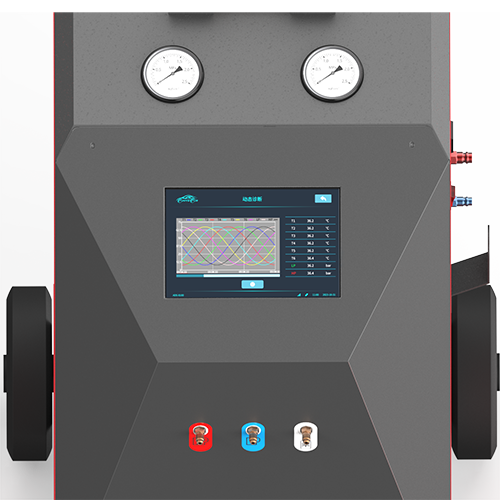

         8)         Designed with 10 inch touch screen.

         9)         Database.

       10)         Program and database can be updated.

       11)         With printer.

2、 Specifications

         1)        Working conditions:

                          Ambient temperature: 0~50°C

              Relative humidity: ＜85%

  2)         Voltage input: □AC220V±10％/6A   □AC110V±10％/10A

  3)         Compressor：16cc

  4)         Vacuum pump:70L/Min，5Pa

  5)         Load cell for tank: ±10g

  7)         Tank:12L

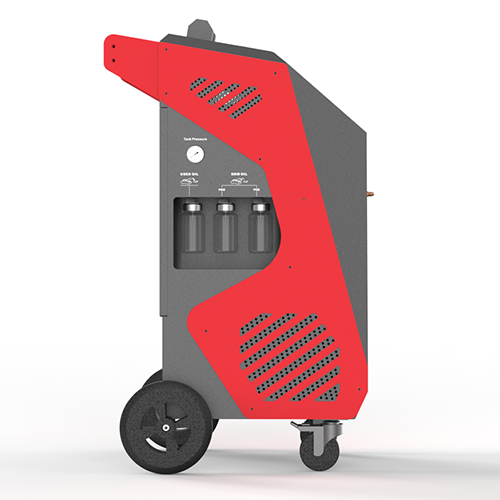

  8)         Oil bottle: 300ml*3

12)         Working pressure: max. 20bar

13)         HP gauge: -1bar~3.5MPa

14)         LP gauge: -1bar~2.0MPa

15)         Backlighting：10 inch touch screen

3、Functions

1) Primary functions

       A、    Automatic flushing

       B、    Automatic recovering/recycling

       C、    Automatic/manual used oil drain

       D、    Automatic vacuum

       E、    Automatic/manual new oil injection

       F、    Automatic recharging with load cell

       G、    Auto mode

       H、    Database

2) Subsidiary functions

       A、    Parameter setting

       B、    Supply refrigerant

       C、    Electric scale calibration

       D、    Maintenance procedures (dry-filter exchange, vacuum pump maintenance)

       E、    Printer checking

       F、    System inquiry

       G、    Equipment info

       H、    Help
