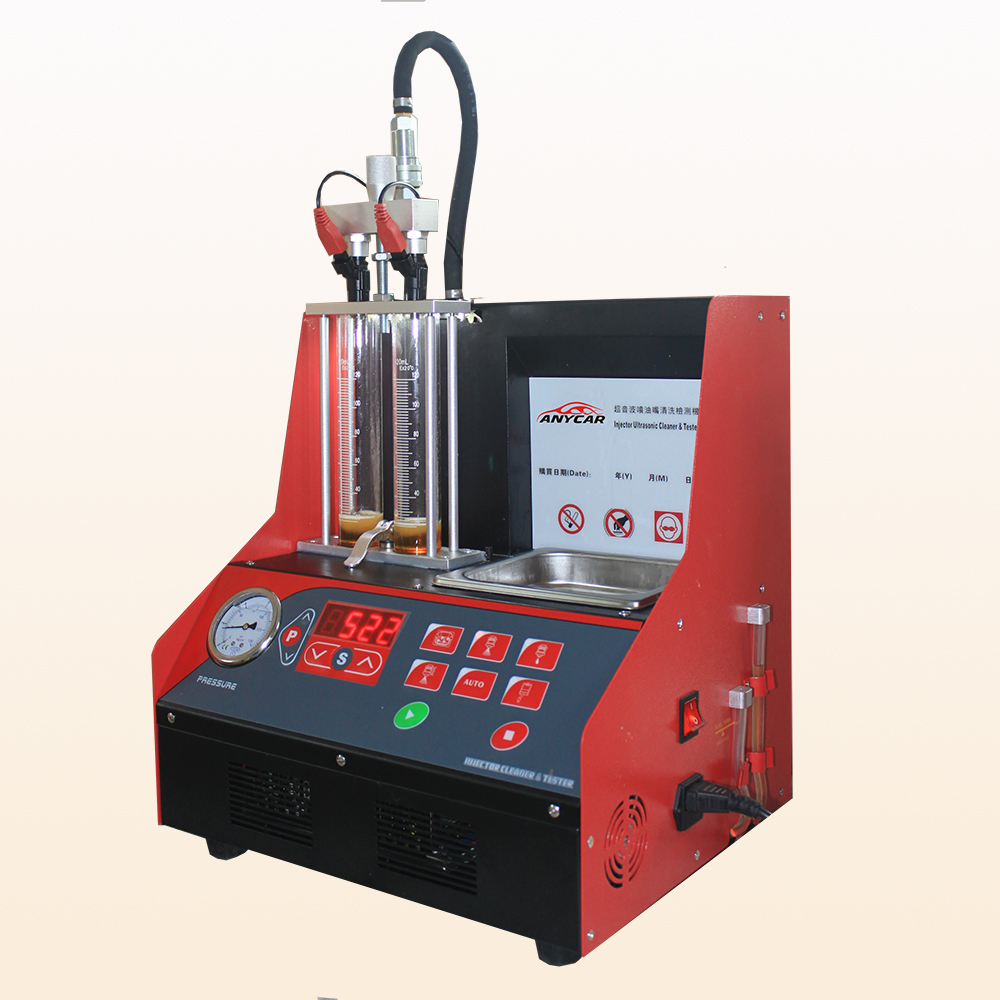

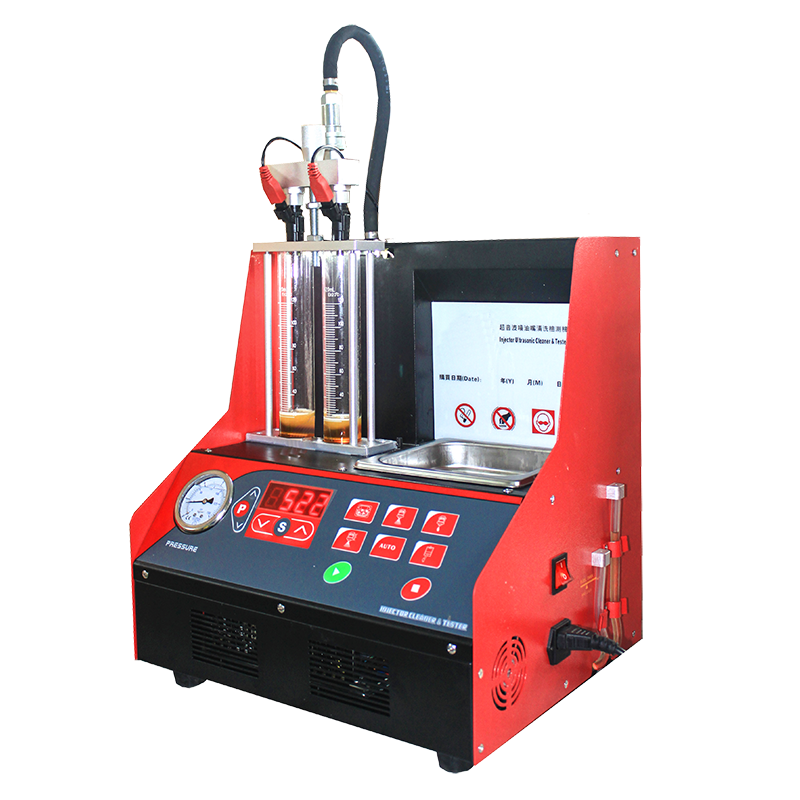

IMT-200N Motorcycle Injector Cleaner & Tester

1、Features

1)         Adopting the powerful ultrasonic cleaning technology, the equipment offers complete cleaning to the injectors.

2)         Fuel pressure control through microcomputer offers stable pressure control and large adjustable range, which can help to achieve automatic cleaning and testing of injectors.

3)         With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors and real-time monitoring of the dynamic values.

4)         Adopting humanization design can make the system pressure fast restored to the default values.

5)         The test and cleaning pressure can be restored.

2、Functions

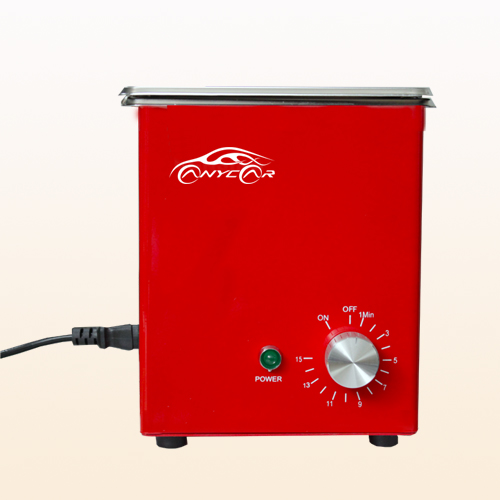

1)         Ultrasonic cleaning

2)         Uniformity test

3)         Spray-ability test

4)         Leakage test

5)         Injecting flow test

6)         Auto. Mode test

7)         On-vehicle cleaning

8)         Time setting

3、Specifications

1)         Power supply: AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz

2)         Input power: 230W

3)         Ultrasonic cleaner power: 100W

4)         Time range: 60～5400s, step: 60s

5)         Fuel tank capacity: 2500ml

6)         Temperature:-10℃~+40℃

7)         Relative humidity:＜85%

8)         Intensity of outer magnetic field:＜400A/m

9)         No naked flame within2m.
