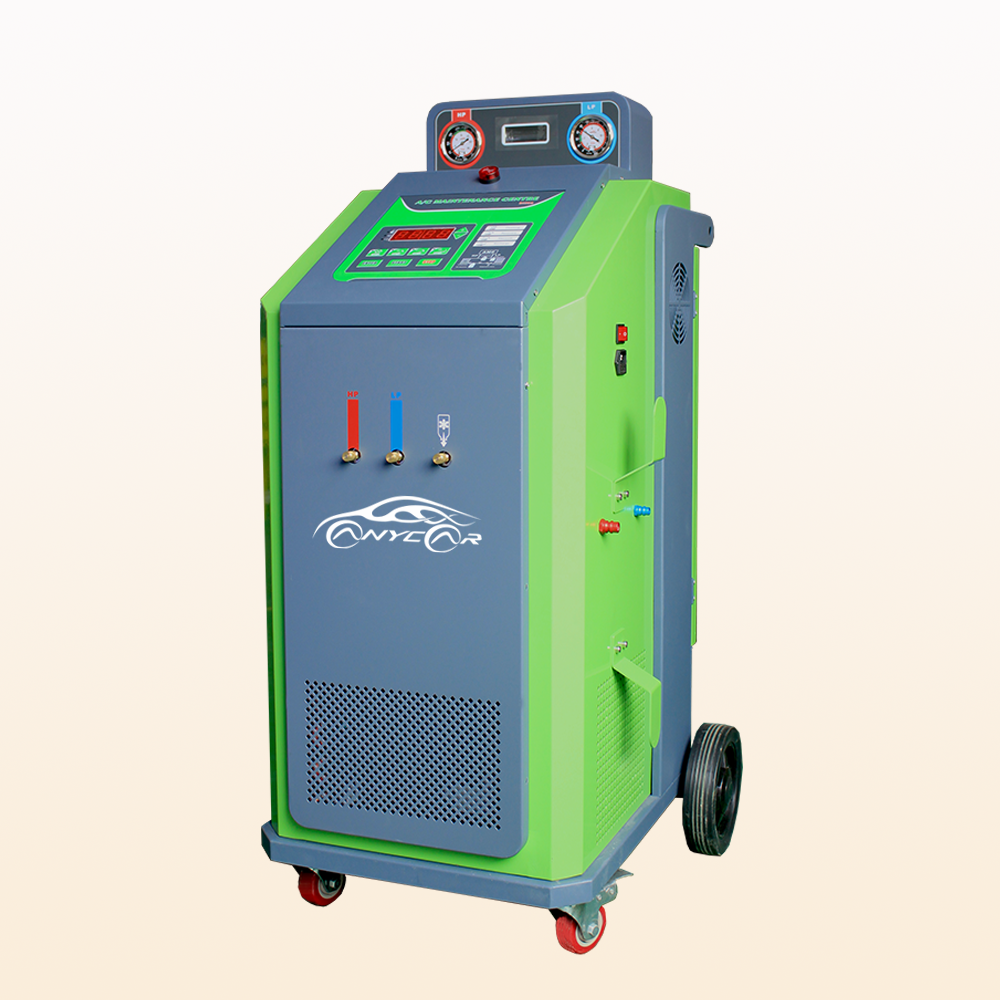

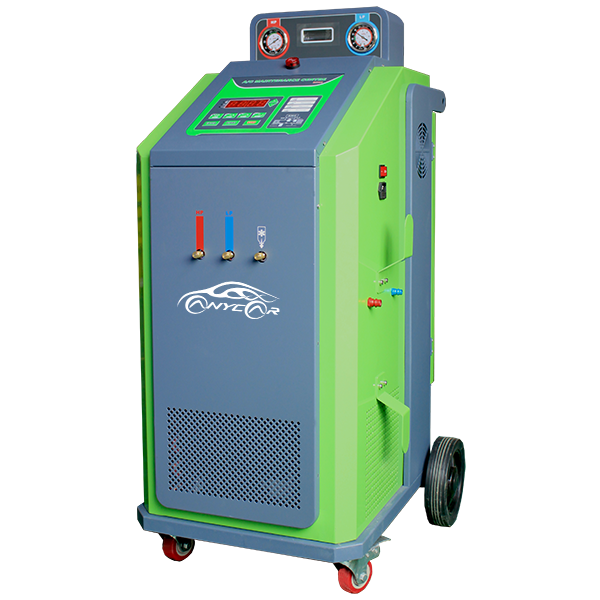

AMC-200/200A A/C System Maintenance Center

1、 Features

1)         Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance.

2)         With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.

3)         Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

4)         Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car.

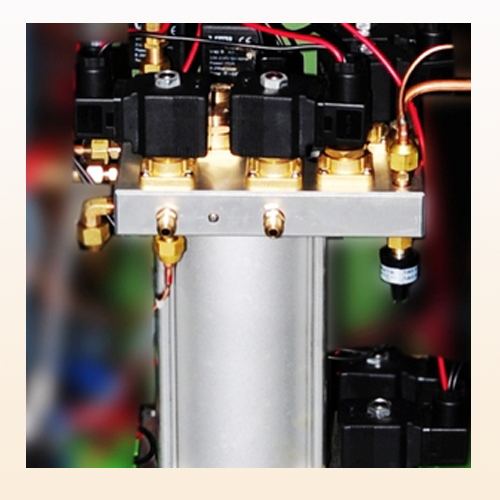

5)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

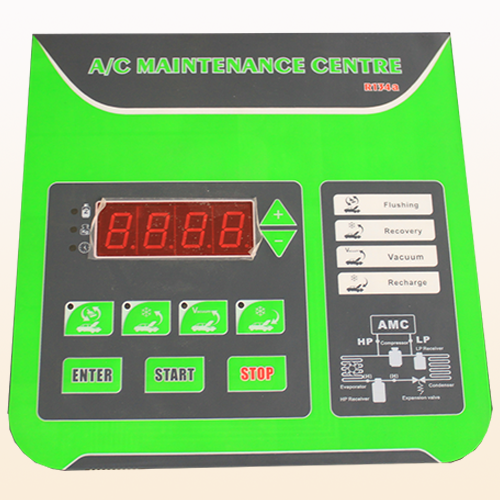

6)         Easy to operate with the concise operating interface.

2、Specifications

1)         Voltage input: □AC220V±10％~50Hz   □AC110V±10％~60Hz  □AC220V±10％~60Hz

2)         Compressor：12.12cm³

3)         Vacuum pump:7.2m³/h，5Pa

4)         Load cells: ±10g

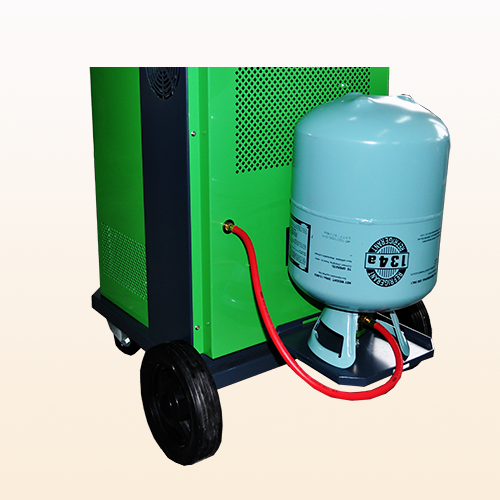

5)         Tank:12L

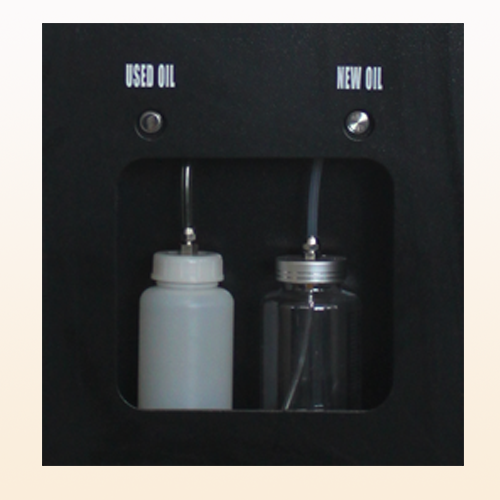

6)         New Oil bottle: 250ml

7)         Used Oil bottle:500ml

8)         Working pressure: max. 20bar

9)         HP gauge: -1bar~3.5MPa

10)       LP gauge: -1bar~2.0MPa

11)       Backlighting：LED

3. Functions

1) Primary functions

A.         Flushing

B.         Recovery/Recycling

C.         Used oil discharging

D.         Vacuum

E.         New oil filling

F.         Recharging

2) Subsidiary functions

A.         Refrigerant supplying

B.         Load cell calibration

C.         Recharging tank exchanging procedure

D.         Maintenance procedure for dry filter

E.         Alarms

F.         Parameters setting

G.        Parameters inquiring
